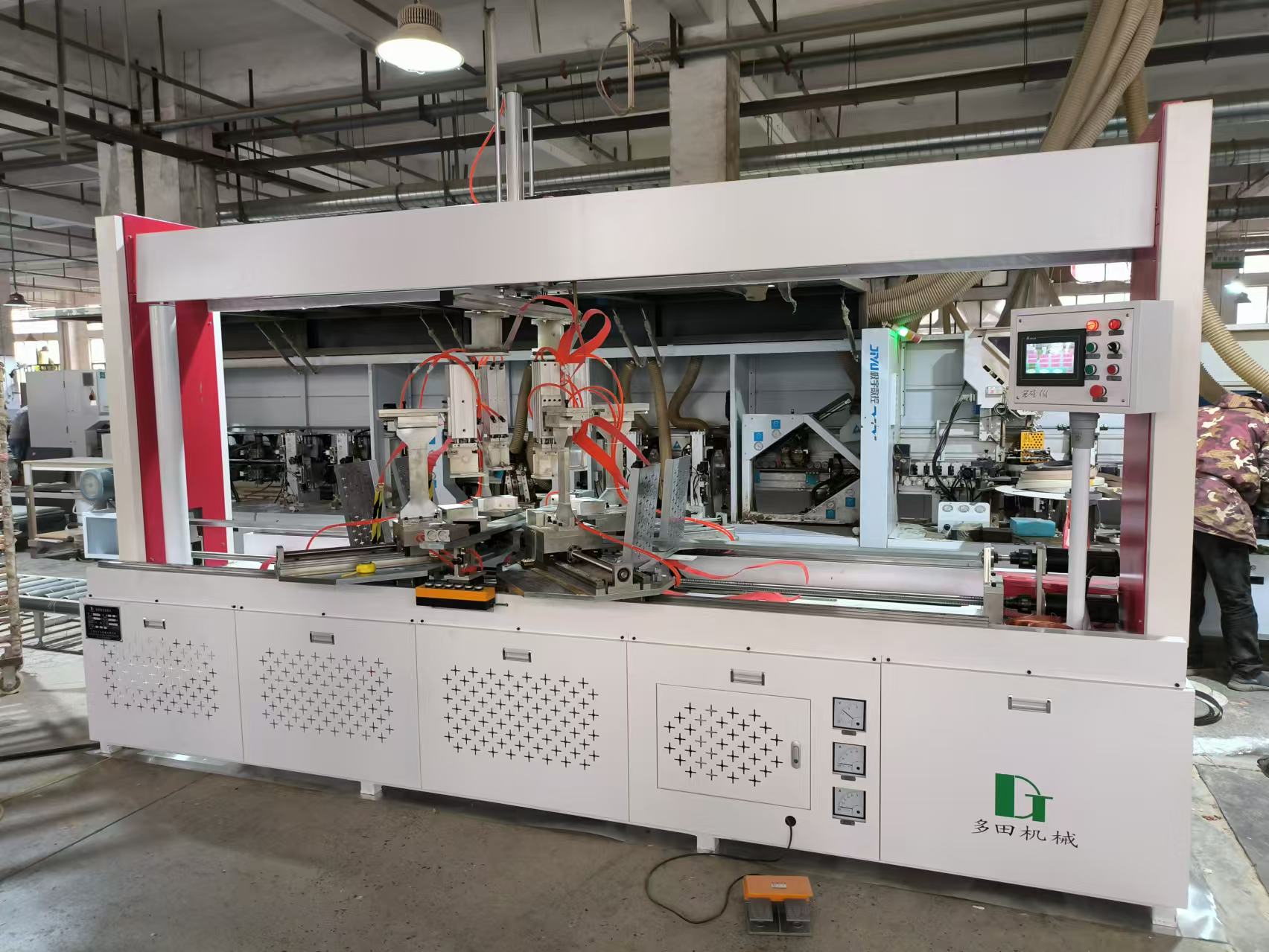

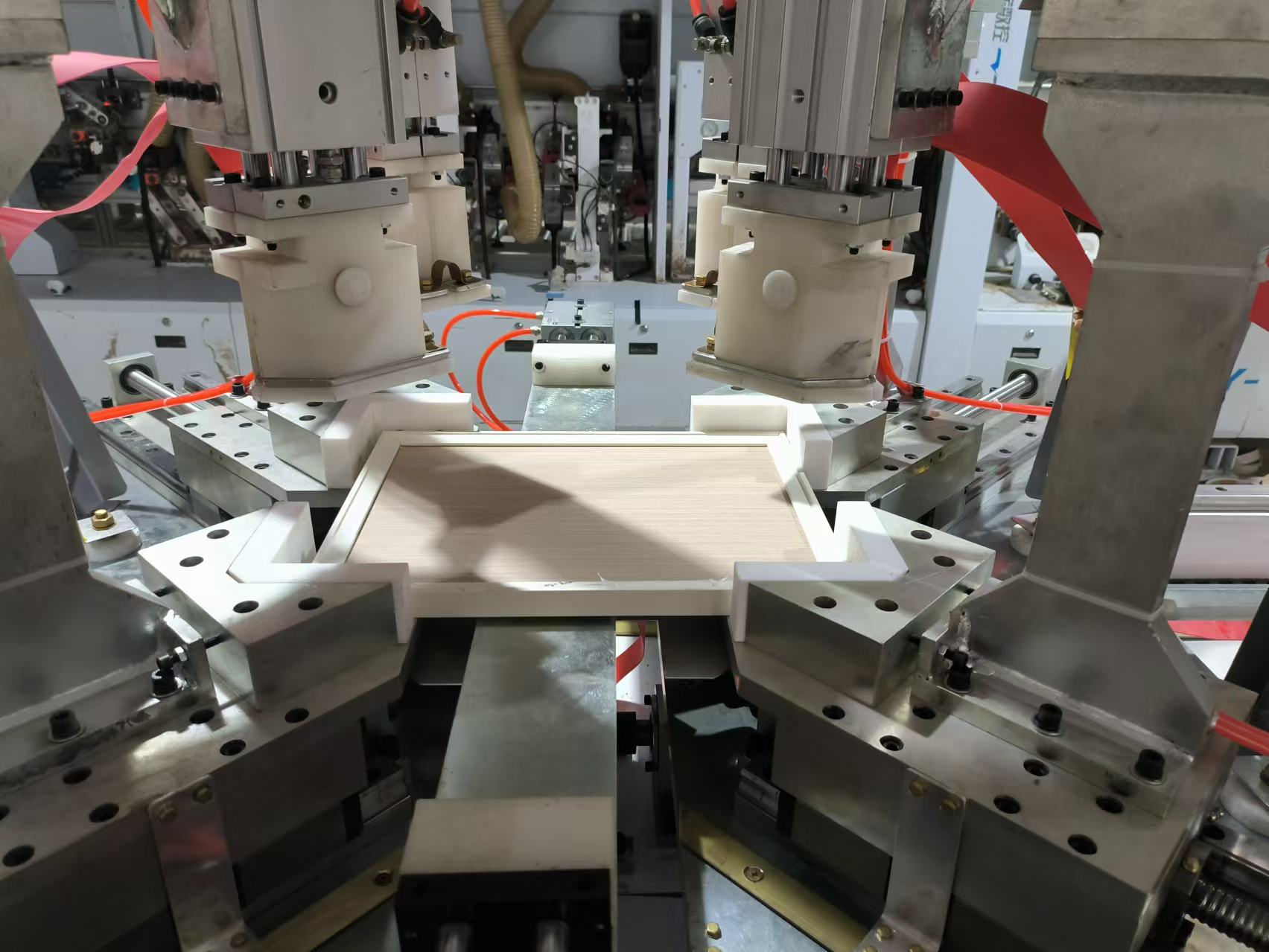

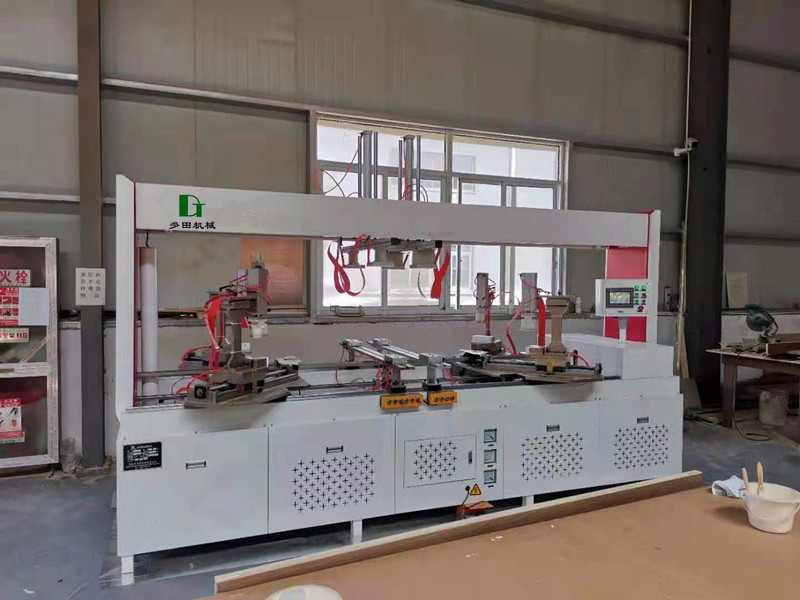

High-frequency frame assembly machine
Release Time：2021-08-30
Equipment characteristics
· 1, the use of high-frequency heating, heating fast, solid bonding.
· 2. Simple and automatic operation. A working cycle of about 10 seconds, the cycle is short.
· 3, size adjustment automation. PLC automatic control, touch screen operation.
· 4, using ball screw, stitching and positioning accurate.
· 5. Servo motor drive, CNC machining.
· 6. Adopt linear guide rail.
· 2. Simple and automatic operation. A working cycle of about 10 seconds, the cycle is short.
· 3, size adjustment automation. PLC automatic control, touch screen operation.
· 4, using ball screw, stitching and positioning accurate.
· 5. Servo motor drive, CNC machining.
· 6. Adopt linear guide rail.

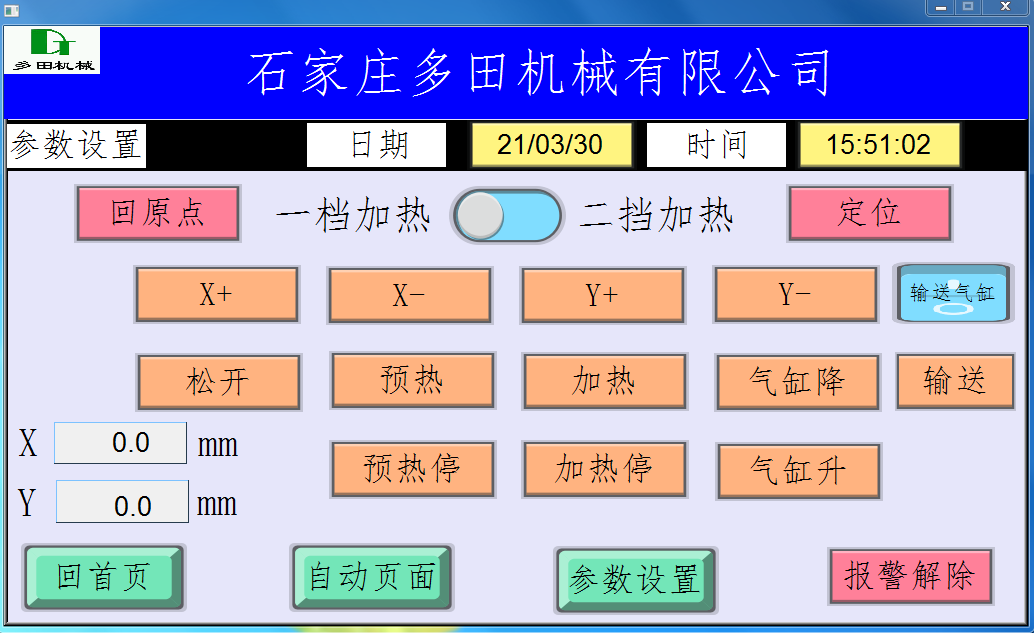

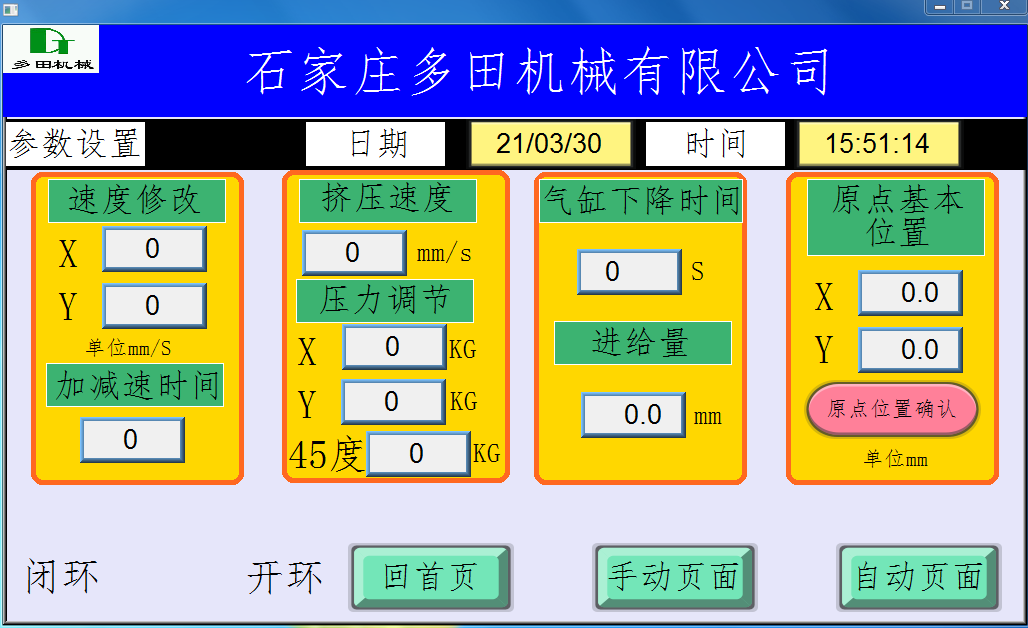

Intelligent operating system

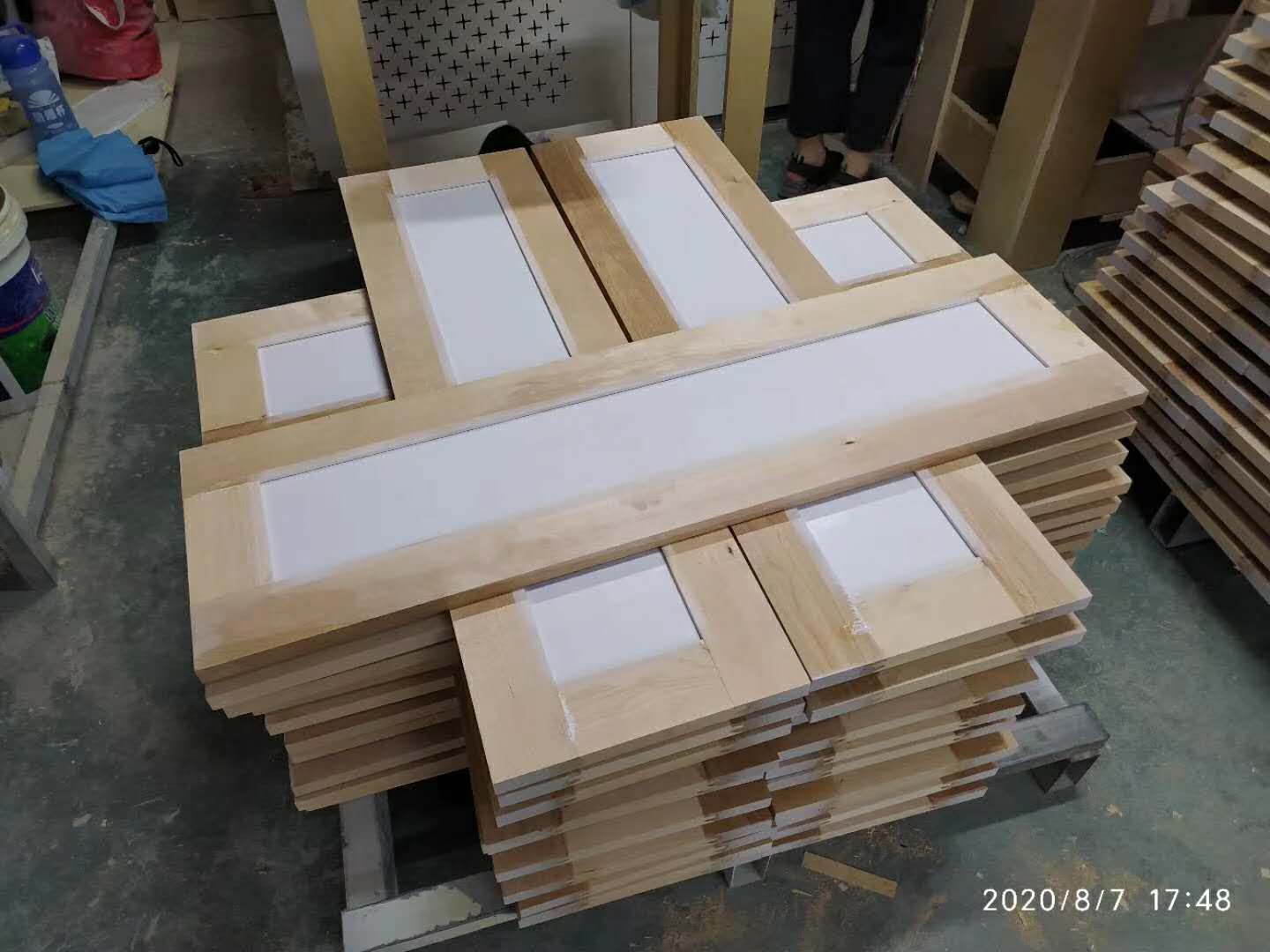

Application range is suitable for photo frame, picture frame, cabinet door splicing.
Equipment parameter
| Model | GZK-1407-DT | GZK-2008-DT | GZK-2810-DT | GZM-3210-DT | ||
| Max working size(mm) | 1400*700 | 2000*800 | 2800*1000 | 3200*1000 | ||
| Control Type | PLC control,touch screen control board | |||||
| Curing time(s) | 5-20s | |||||
| Motor type | Servo motor | |||||
| Pressurizing mode | precision ball screw | |||||
| Weight(T) | 8 | 1 | 1.5 | 2 | ||
| it can joint the fream of shape of"日"and "目“（you can choose） | ||||||
