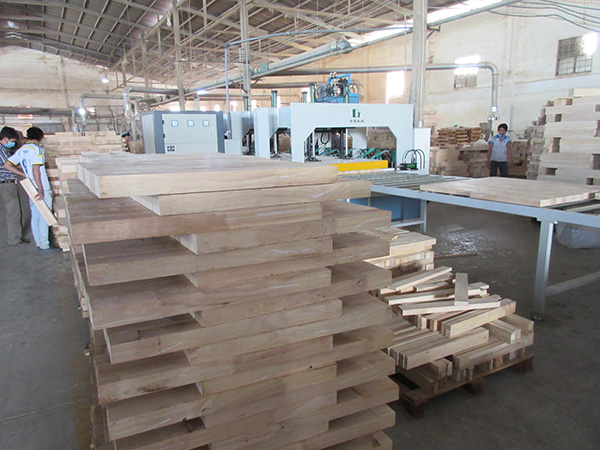

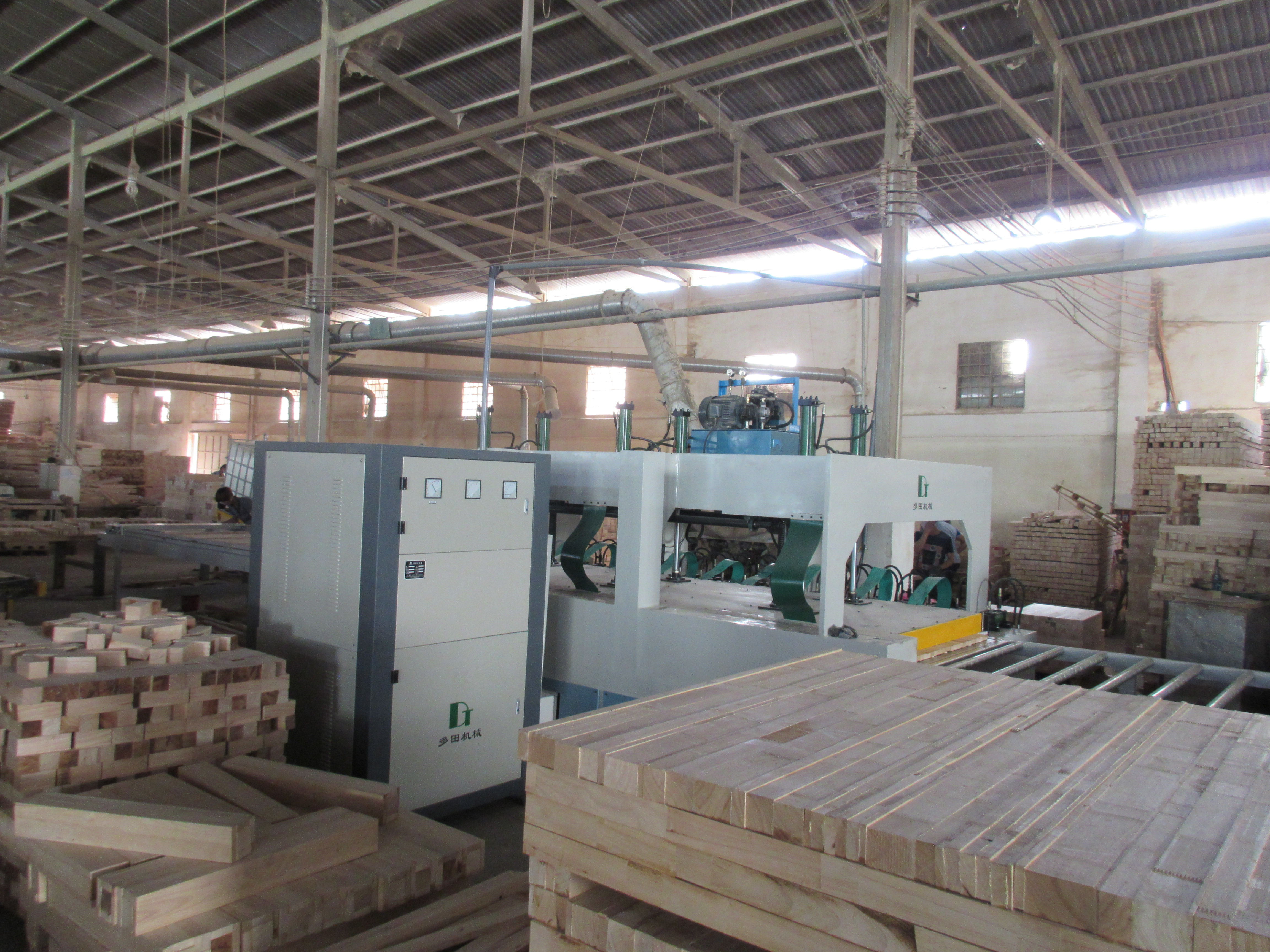

High frequency splicer (helicopter)
Release Time：2021-08-30
· High-frequency splicing machine, also known as high-frequency splicing machine, is a commonly used material processing equipment in the wood industry. Splicing equipment splices smaller volumes of wood (veneer, bamboo board) into larger volumes of materials. Compared with cold jointing and other heating methods, the equipment has the advantages of high automation, wide range of adaptation and low cost of jointing.
· Scope of application
· 1 integrated wood splicing/joinery board core splicing;
2 solid wood doors and Windows splicing, door core splicing;
· 3 laminated, parquet floor bonding;
· 4 table, conference table splicing;
5 gumlaminated wood pressing, wood strip edge sealing, frame combination;
· 6 cabinet door, electric guitar sound cylinder splicing.
· 1 integrated wood splicing/joinery board core splicing;
2 solid wood doors and Windows splicing, door core splicing;
· 3 laminated, parquet floor bonding;
· 4 table, conference table splicing;
5 gumlaminated wood pressing, wood strip edge sealing, frame combination;
· 6 cabinet door, electric guitar sound cylinder splicing.
Intelligent operating system
- Parameter
| Model | GPB-2513-DT-50L | GPB-3213-DT-60L | GPB-4213-DT-80L | GPB-6213-DT-120L |
| Minimum Gluing size (mm) |
2500*1300 | 3200*1300 | 4200*1300 | 6200*1300 |
| Total pressure (T) | 50/60/85/120 | |||
| Control mode | PLC touch screen program automatic control | |||
| Frequency (MHZ) | 6.78 | |||
| Maximum Gluing Thickness (mm) |
≦60 | |||
| HF output power (KW) | 20 | 20 | 30 | 50 |
| ***** can be customized according to different needs of customers. * * * * | ||||
